Portable forest winches FORESTBOX 1200 kg

Portable forest winches FORESTBOX 1200 kg

Use:

  • Traction/Pulling/Hauling operations only.
  • Forestry profesionals (to pull wood in places that cannot be accessed by heavy machineries.
  • Fire departments.
  • Rescue operations.
  • Construction sector (to pull construction materials, cables or pipes...)...

Download leaflet Receive a quote
  • Aluminium frame and housing with fixation ring.
  • Easy to use.
  • Compact and light.
  • 1 speed model.
  • 2 stroke ACTIVE motor.
  • Illimited rope length.
  • Safety usable from a distance by pulling on the rope.
  • Centrifugal clutch: the capstan-winch continue to operate on idle which prevents unintentional rotation.
  • Locking cleat break preventing any backward movement of the load.
  • Many accessories available in option: textile rope with thimble and hook (m/l or kit 50/100 m), sheave for doubling capacity, sling, shackle, soft shackle, diverting pulley, chocker chain, transport bag.

Applications :

FORESTBOX winches Presentation of the FORESTBOX range.

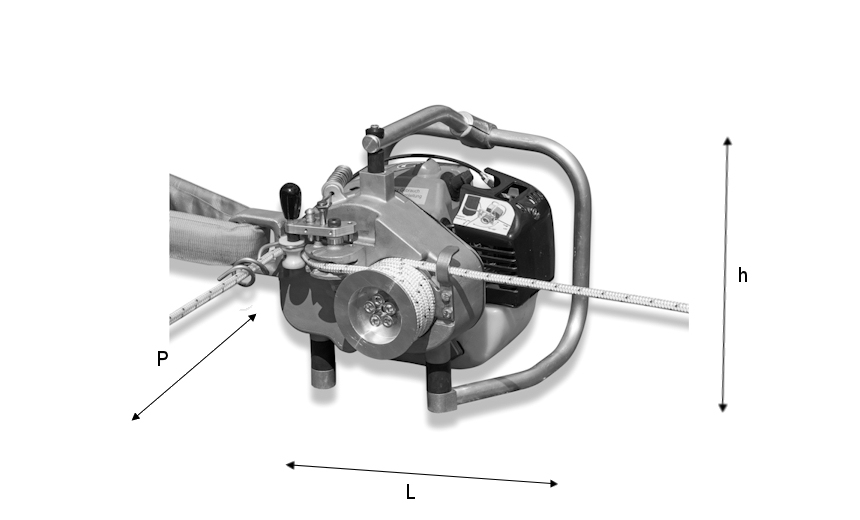

Technical characteristics Portable forest winches FORESTBOX 1200 kg

Capacity 1st layer kg1200
Speed m/min14
Capacity top layer kg1200
Motor kW3,3
Gearing1 speed
Textile rope Ø mm8/9/9,5
Weight kg13

OPTIONS

Transport bag for FORESTBOX winches
FORESTBOX_SAC
Sheave for FORESTBOX 400, 500 and 1200 kg winches
FORESTBOX_POULIE_400_1200
Soft shackle for FORESTBOX winches
FORESTBOX_MANILLE_SOUPLE
Shackle for FORESTBOX winches
FORESTBOX_MANILLE
Sling for FORESTBOX winches
FORESTBOX_ELINGUE
Hook for FORESTBOX winches
FORESTBOX_CROCHET
Chocker chain for FORESTBOX winches
FORESTBOX_CHAINE
Textile rope for FORESTBOX 400, 500 and 1200 kg winches, m/l
FORESTBOX_CABLE_400_1200
Textile rope for FORESTBOX 400, 500 and 1200 kg winches, kit 50 m
FORESTBOX_50M_CABLE_400_1200
Textile rope for FORESTBOX 400, 500 and 1200 kg winches, kit 100 m
FORESTBOX_100M_CABLE_400_1200
Download leaflet Receive a quote
